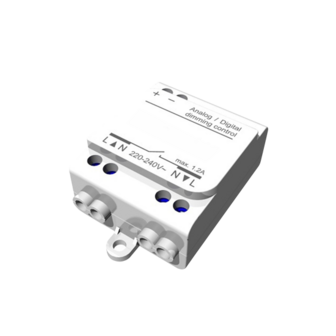

Suitable for controlling single 0-10V / Dali drivers or 1-10V in combination with an external relay. Equipped with an internal relay, max 0.6A. When integrated into the network, the module can, depending on the selected profile, dim a luminaire in white, Tunable White, RGB, RGBW, etc. Additionally, the module can be used as a switching module in combination with a momentary switch.
| Item |
1002664 |
| |
|
| Input |
|
| Voltage range: |
220-240 VAC |
| Frequency: |
50 Hz |
| Max. mains current: |
0,6 A |
| |
|
| Mains Output |
|
| Output relay |
SSR on phase line |
| Voltage range |
220-240 VAC |
| Frequency |
50 Hz |
| |
|
| 0-10V Output |
|
| Voltage range |
0-10 VDC |
| Maximum number of drivers connected |
1 pc |
| |
|
| DALI Output |
|
| Voltage range |
9-12 VDC |
| Maximum number of drivers connected |
1 pc |
| |
|
| Radio transceiver |
|
| Operating frequencies |
2,4...2,483 Ghz |
| Maximum output power |
+4 dBm |
| |
|
| Operating conditions |
|
| Ambient temperature, ta |
-20...+50°C (Iout 0 A) |
| -20...+40°C (Iout 0,6 A) |
|
| Max. case temperature, tc |
+70 °C |
| Storage temperature |
-25...+75 °C |
| Max. relative humidity |
0...80%, non-cond. |
| |
|
| Connectors |
|
| Wire range, solid & stranded |
0,75-1,5 mm2 |
| |
14-22 AWG |
| Wire strip length |
6-7 mm |
| Tightening torque |
0,4 Nm/4 Kgf.cm/2,6 Lb-In |
| |
|
| Mechanical data |
|
| Dimensions |
56,5 x 35,8 x 22,3 mm |
| Weight |
48 g |
| Degree of protection |
IP20 (indoor use only) |
| Protection class |
Built-in Class II |
