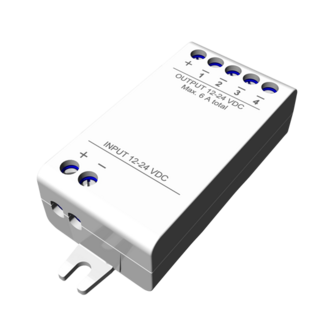

Bluetooth controller. Suitable for dimming 12 or 24 VDC LED strips or spots. Depending on the selected profile, Tunable White, Dim to Warm, RGBW, etc. can be controlled. Power supply: 12-24 VDC.
| Item |
1002589 |
| |
|
| Input |
|
| Voltage range |
12-24 VDC |
| Max. input current |
6 A |
| No-load standby power |
< 0,3 W |
| |
|
| Output |
|
| Output voltage |
same as input voltage |
| Max. output power |
144 W @ 24 VDC |
| |
72 W @ 12 VDC |
| Max. output current |
6 A (can be freely divided |
| |
between the channels) |
| Min. load requirement |
0 W |
| Dimming method |
Pulse Width Modulation (PWM) |
| |
|
| Radio transceiver |
|
| Operating frequencies |
2,4...2,483 Ghz |
| Maximum output power |
+4 dBm |
| |
|
| Operating conditions |
|
| Ambient temperature, ta |
-20...+45°C |
| Max. case temperature, tc |
+75°C |
| Storage temperature |
-25...+75°C |
| Max. relative humidity |
0...80%, non-cond. |
| |
|
| Connectors |
|
| Wire range, solid & stranded |
0,75 - 1,5 mm2 |
| |
14 - 22 AWG |
| Wire strip length |
6 - 7 mm |
| |
|
| Tightening force |
0,4 Nm |
| Mechanical data |
|
| Dimensions |
72,6 x 30,0 x 18,0 mm |
| Weight |
23 g |
| Degree of protection |
IP20 (indoor use only) |
