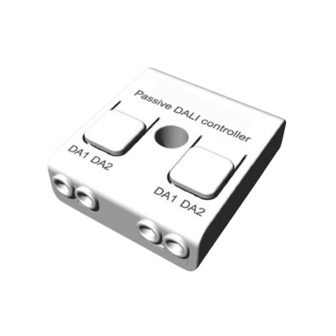

Dali controller
Dali controller
Bluetooth controller for DALI

Item 1003051

Input
Voltage range  9,5-22,5 VDC
Input current when idle, Iidle  5 mA
Peak input current, Ipeak  30 mA
Max. DALI bus current  250 mA
Standby power  < 0,1 W

Radio transceiver
Operating frequencies  2,4...2,483 Ghz
Maximum output power  +4 dBm

Operating conditions
Ambient temperature, ta  -20...+55°C
Max. case temperature, tc  +65°C
Storage temperature  -25...+75°C
Max. relative humidity  0...80%, non-cond.

Connectors
Wire range, solid & stranded  0,5 - 1,5 mm2
   16 - 20 AWG
Wire strip length  6 - 8 mm

Mechanical data
Dimensions  40,4 x 36,3 x 14,0 mm
Weight  15 g
Degree of protection  IP20 (indoor use only)

Insulation
Casing to DALI  Reinforced
