| Item: 1003049 |
|
|
| |
|
|

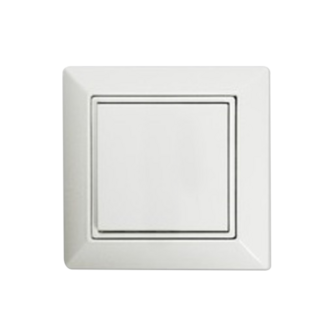

| Kinetic user interface. The buttons can be programmed as desired to control a scene, a group or a lamp. |
| |
|
|
| Radio Transmitter |
PTM 215B pushbutton module with integrated antenna |
| Energy Source |
Electro-dynamic energy generator, maintenance free |
| Frequency / Protocol |
2.4 GHz / Bluetooth Low Energy (BLE) |
|
| Range |
Within one room (up to 10 m line of sight) |
| Channels |
2 or 4 (single or double rocker with medial position, pressed/released) |
| Dimensions of Rocker |
50 x 50 mm |
|
| Dimensions of Frame Insert |
55 x 55 mm |
|
| Dimensions of Central Plate |
71 x 71 mm |
|
| Dimensions of Frame |
81 x 81 mm |
|
| Total Installation Height |
14 mm (frame lies directly against the wall) |
| Mounting |
Gluing (double-sided mounting film enclosed), |
| |
Screwing onto flat surface |
|
| Operating conditions Temperature |
-25 … +65°C |
|
| Humidity |
0 … 95% r.h., non-condensing (dry environment only) |
| Lifetime |
> 50.000 actuations (switching cycles) according to EN 60669 / |
| |
VDE 0632 |
|
| Approvals |
RED, FCC, ISED, ACMA |
|
