LED Box Mini

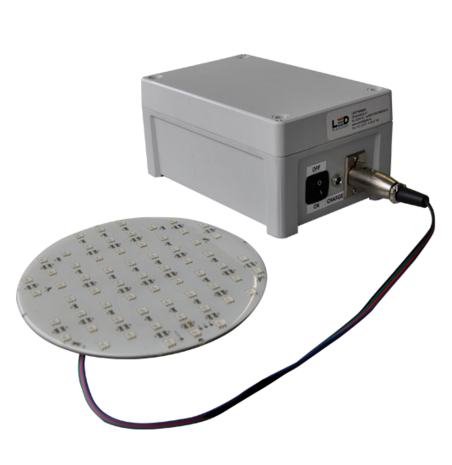

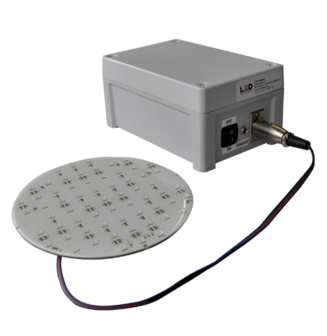

The LED BOX Mini consists of:

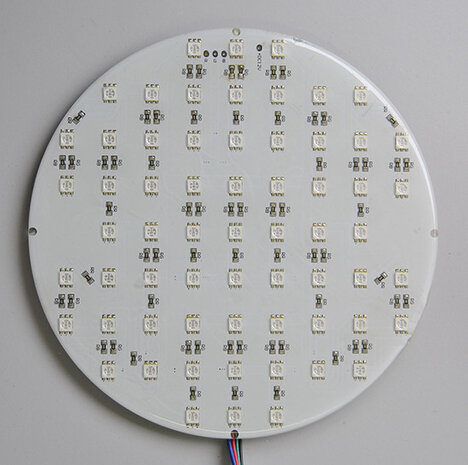

• RGB SMD light panel with 63 pieces of 5050 SMD tri-chip LEDs
• Diameter of SMD panel: 16cm with Velcro and epoxy finish
• DC12V input
• Power: 15 watts
• 40,000 hours of operation
• RGB colors
• Plastic LED box:
  • Rechargeable AGM battery (4Ah) for standalone operation of approximately 10 hours
  • Equipped with charging connectors and XLR connection for lighting

RGB controlling system:

• RGB remote control

• Choice of RGB controller (Infrared (IR) or Master Controller on Radio Frequency)

• Master RGB Controller on Radio Frequency (RF):

  • Wireless synchronous operation between all RGB controllers
  • Choice of 20 fixed colors
  • 16 dimming functions
  • Choice of 9 pre-programmed functions such as ambilight at different speeds, disco, stroboscopic effects, etc.
  • Control range up to 300 meters with 1 remote control
  • Adjustable frequencies on controllers and remote

RGB Controller on Infrared (IR):

• 24 keys remote controller for easy color selection
• With a number of pre-programmed functions
• Not synchronized between controllers
• Easy operation and choices
