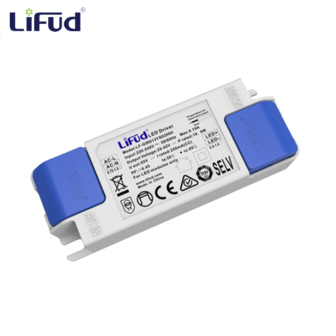

Lifud driver | Constant Current | Compact Non Dimmable | Fixed Current | Basic | Dip switch | 6W, 7W, 8W, 9W | 220-240V | 8-11V, 14-24V, 25-36V, 25-42V | Low PF
QLA: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Low PF (Basic) Dip switch |
| Model |
LF-GIR009YS |
| Max Output |
Options: 6W, 7W, 8W, 9W |
| Dim. Functions |
Non Dimmable |
| Input Voltage |
220- 240V |
| Output Voltage |
25V-42V |
| Output Current + Efficiency (Typical) |
6W: 135mA, 78% |
| |
7W: 160mA, 82% |
| |
8W: 180mA, 81% |
| |
8W: 200mA, 82% |
| Output Voltage |
25V-36V |
| Output Current + Efficiency (Typical) |
9W: 250mA, 81% |
| Output Voltage |
14V-24V |
| Output Current + Efficiency (Typical) |
7W: 300mA, 82% |
| |
8W: 350mA, 81% |
| Output Voltage |
8V-11V |
| Output Current + Efficiency (Typical) |
7W: 500mA, 82% |
| |
8W: 600mA, 82% |
| |
9W: 700mA, 82% |
| PF (Typical) |
0.50 (230 Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
96*36*24 mm |
| Certificates |
CB, CE, RCM, CCC |
| Warranty |
3 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
