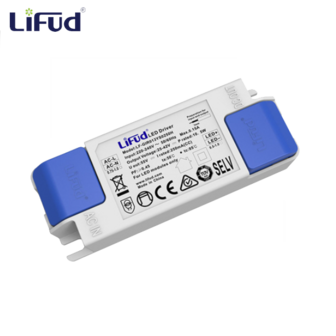

Lifud driver | Constant Current | Compact Non Dimmable | Fixed Current | Basic | Dip switch | 9W, 11W, 12W, 13W, 14W | 220-240V | 14-24V, 25-38V, 27-42V, 25-42V | Low PF
QLA: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Low PF (Basic) Dip switch |
| Model |
GIR013YS |
| Max Output |
Options: 9W, 11W, 12W, 13W, 14W |
| Dim. Functions |
Non Dimmable |
| Input Voltage |
220- 240V |
Output Voltage |
25V-42V |
| Output Current + Efficiency (Typical) |
9W: 220mA, 85% |
| |
11W: 250mA, 85% |
| |
12W: 280mA, 85% |
| |
13W: 300mA, 86% |
| |
|
| Output Voltage |
25V-38V |
| Output Current + Efficiency (Typical) |
13W: 320mA, 86% |
| |
14W: 350mA, 86%
|
| Output Voltage |
14V-24V |
| Output Current + Efficiency (Typical) |
12W: 500mA, 86% |
| |
13W: 550mA, 86% |
| PF (Typical) |
0.50 (230 Vac) |
| Working Temp. |
-30℃~+50℃ |
| Dimensions |
96*36*24 mm |
| Certificates |
CB, CE, RCM, CCC |
| Warranty |
3 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
