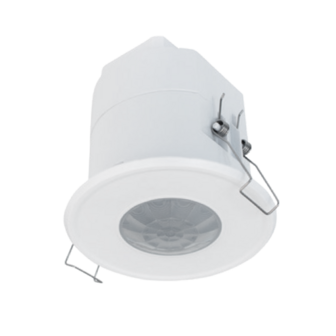

Name: PIR Sensor 2 channels
Availability: InStock

PIR Sensor 2 channels

2.4 GHz - 2.483 GHz

Technical Specifications

Operation frequency	2.4 GHz - 2.483 GHz
Transmission power	4 dBm
Range (Typical indoor)	10~30m
Protocol	Bluetooth 5.0 SIG Mesh

Sensor Data

Sensor Model	PIR detection
Sensor 2 channels	Installation Height : 6m
	Detection Range(Ø) :9m

Input & Output Characteristics

Operating voltage	220~240VAC 50/60Hz
Load ratings	Channel 1: 400VA
	Channel 2: 24VDC@2A,250VAC@2A
Warming-up	20s

Safety & EMC

EMC standard (EMC)	EN55015, EN61000-3-2/-3-3,
	EN61547
Safety standard (LVD)	EN60669-1, EN60669-2-1
	AS/NZS60669-1/-2-1
RED	EN300328, EN301489-1/-17
Certification	CE, RED, RCM, UKCA

Environment

Operation temperature Ta: -20 OC ~ +50 OC
Environment	IP rating IP20/IP54
