Name: Profile Door sensor switch 12/24V
Availability: InStock

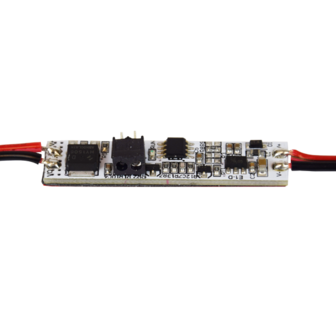

Profile Door sensor switch 12/24V

For LED Strip in profile

Item: 1003017

Features
● Door sensor switch, connected directly to the low voltage LED strip. ● When the door open, or no obstacle ahead, the strip turn on gradually. When the door close, or obstacle ahead, the strip turn off gradually. ● Max 4A output current, max output power 96W@24V. ● Generally installed in the aluminum lamp strip housing. ● 3M paste in the bottom of the PCBA make easy installation and security. ● Low cost and high stability. ● Widely used in wardrobe lights.

Input and Output
Input voltage	12-24VDC
Output voltage	12-24VDC
Output power	Max. 48W@12V \| Max. 96W@24V

Sensor data
Sensitive field	⩽10cm
Sensitivity angle	15-30

Environment
Operation temperature	-30°C + 55°C

Safety and EMC
EMC standard (EMC)	EN301 489,EN 62479
Safety standard(LVD)	EN60950
Certification	CE,EMC,LVD

Warranty and Protection
Warranty	5 years
Protection	Reverse Polarity
