Name: Profile Motion sensor switch 12/24V
Availability: InStock

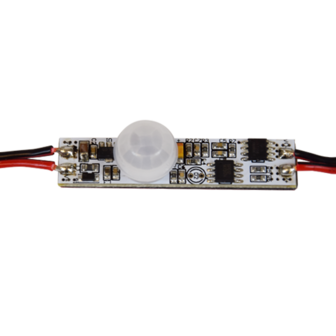

Profile Motion sensor switch 12/24V

For LED Strip in profile

Item: 1003016

Features
● PIR motion sensor switch, connected directly to the low voltage LED strip. ● When people or objects enter the sensitive field, the strip turn on. When these exit the sensitive field, the strip turn off after 30 seconds. ● Max 3A output current, max output power 72W@24V. ● Generally installed in the aluminum lamp strip housing. ● 3M paste in the bottom of the PCBA make easy installation and security. ● Low cost and high stability. ● Widely used in table lamps, bedroom lamps, wardrobe lights, etc

Input and Output
Input voltage	12-24VDC
Output voltage	12-24VDC
Output power	Max. 36W@12V \| Max. 72W@24V

Sensor data
Sensitive field	⩽3m
Sensitivity angle	120

Environment
Operation temperature	-30°C + 55°C

Safety and EMC
EMC standard (EMC)	EN301 489,EN 62479
Safety standard(LVD)	EN60950
Certification	CE,EMC,LVD

Warranty and Protection
Warranty	5 years
Protection	Reverse Polarity
