Name: Profile Touch sensor & switch 12/24V
Availability: InStock

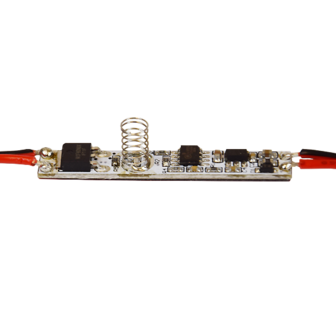

Profile Touch sensor & switch 12/24V

For LED Strip in profile

Item: 1002900

Features
● 1 channel constant voltage single color LED mini sensor dimmer & switch for aluminum profiles. ● High sensitivity touch operation with LED indicator. ● 3A per channel, output connect with 5 meters single color LED strip, max output power 72W@24V. ● 0-100% dimming smoothly without any flash. ● The media on the touch spring can be PC cover, acrylic board or mirror glass. ● 3M paste in the bottom of the PCBA make easy installation and security. ● Low cost and high stability. ● Widely used in table lamps, bedroom lamps, wardrobe lights, etc

Input and Output
Input voltage	12-24VDC
Output voltage	12-24VDC
Output power	Max. 36W@12V \| Max. 72W@24V
Output type	Constant voltage

Dimming data
Input signal	Touch key
Dimming range	0 -100%
PWM Frequency	128Hz

Sensor data
Sensitive field	⩽10cm
Sensitivity angle	15-30

Environment
Operation temperature	-30°C + 55°C

Safety and EMC
EMC standard (EMC)	EN301 489,EN 62479
Safety standard(LVD)	EN60950
Certification	CE,EMC,LVD

Warranty and Protection
Warranty	5 years
Protection	Reverse Polarity
