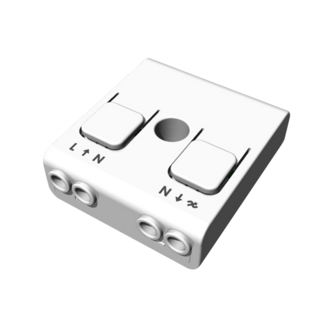

Name: Trailing Edge controller, max. 230V/150W
Availability: InStock

Trailing Edge controller, max. 230V/150W

Item	1003033

Input
Voltage range	85-240 VAC
Frequency	50-60 Hz
Max. mains current	0,65 A
No-load standby power	< 0,3 W

Output
Dimming method	Trailing-edge phase control
Max. output power
- Incandescent and high voltage halogen bulbs	150 W @ 230 VAC
	70 W @ 110 VAC
- high voltage AC LED modules	150 W @ 230 VAC
	70 W @ 110 VAC
- Dimmable LED and CFL bulbs	50 W @ 230 VAC
	25 W @ 110 VAC
- Dimmable electronic transformers	50 W @ 230 VAC
	25 W @ 110 VAC
Max. output current	0,65 A
Min. load requirement	1 W
Max. current pulse	4 A

Radio transceiver
Operating frequencies	2,4...2,483 Ghz
Maximum output power	+4 dBm

Operating conditions
Ambient temperature, ta	-20...+45 °C
Max. case temperature, tc	+65 °C
Storage temperature	-25...+75 °C
Max. relative humidity	0...80%, non-cond.

Connectors
Wire range, solid & stranded	0,5-1,5 mm2
	16-20 AWG
Wire strip length	6-8 mm

Mechanical data
Dimensions	40,4 x 36,3 x 14,0 mm
Weight	15 g
Degree of protection	IP20 (indoor use only)
