| Functions |
| |
| Dimming |
| Hold the Dim down or Dim up button |
| • Smooth dimming of last chosen preset, cycle takes 5 seconds |
| Tap the Dim down button |
| • Chosen preset goes to 0% |
| Tap the Dim up button |
| • Chosen preset goes to 100% |
| |
| Preset Buttons |
| Tap |
| • The chosen preset (lamp control, group control, all lamps, scene recall or |
| animation recall) will turn on |
| Tap again |
| • The chosen preset (lamp control, group control, all lamps, scene recall or |
| animation recall) will turn off |
| |
| Colour Temperature |
| Hold the Multipurpose button |
| • Changes colour temperature smoothly, cycle takes 5 seconds |
| Tap the upper Multipurpose button |
| • Changes to the warmest colour temperature |
| Tap the lower Multipurpose button |
| • Changes to the coldest colour temperature |
| |
| Indirect/Direct Ratio* |
| Hold the upper Multipurpose button |
| • Dims up smoothly the indirect lighting, cycle takes 5 seconds |
| Hold the lower Multipurpose button |
| • Dims up smoothly the direct lighting, cycle takes 5 seconds |
| Tap the upper Multipurpose button |
| • The indirect part goes to max level |
| Tap the lower Multipurpose button |
| • The direct part goes to max level *sum of indirect/direct in all cases 100% |
| |
| Turn Off |
| Press the Dim down and Dim up button for more than 1 second |
| • Turns all lights off in selected network |
| |
Technical Facts
| Size |
90 x 90 x 12 mm |
|

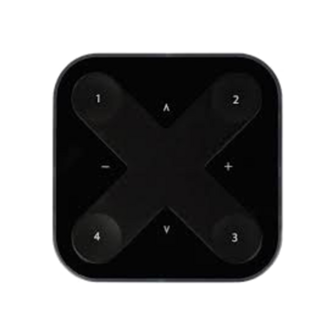

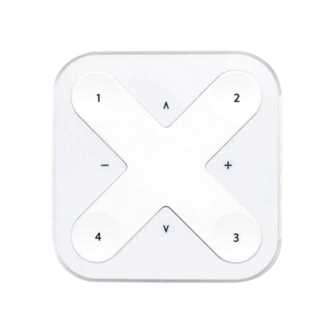

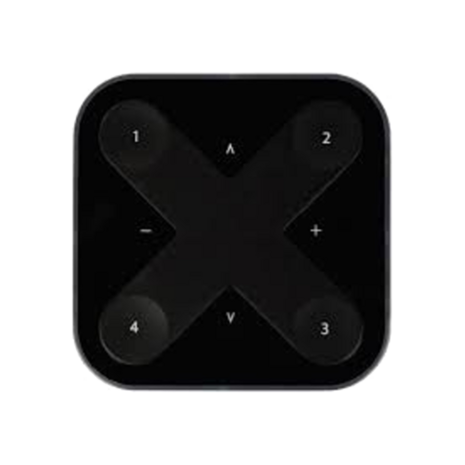

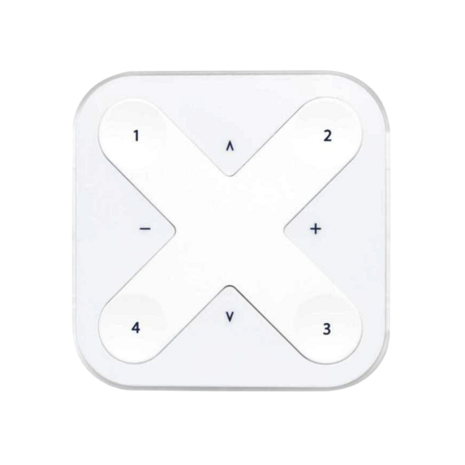

| Colours |
white and black |
|
| Range |
up to 60 meters in open air |
| Battery (included) |
CR2430 Lithium coin cell |
| Battery Lifetime |
2-5 years, depending on usage |
|
